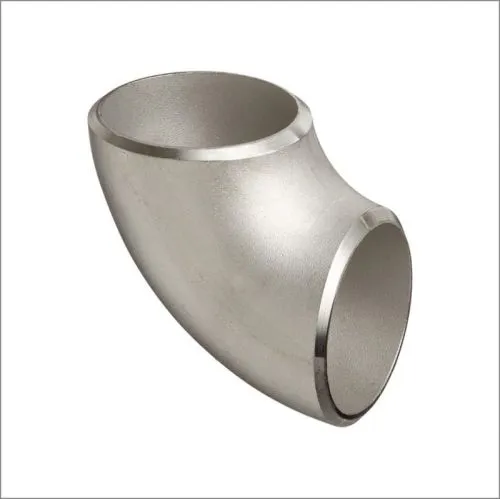

What is a Short Radius Elbow?

A Short Radius (SR) Elbow is a type of pipe fitting used to change the direction of flow in a piping system, typically by 45° or 90°, within a compact space. The term “short radius” means that the elbow’s curvature radius is equal to the pipe diameter (1D), making it smaller and tighter compared to a long radius elbow. This design is particularly useful in tight or confined areas where space is limited and a sharp turn in the pipeline is required.

Short Radius Elbows are available in seamless, welded, and fabricated types and are manufactured in accordance with international standards like ASME B16.9, ASME B16.28, and MSS-SP-43. They are made from various materials including stainless steel, carbon steel, alloy steel, and duplex/super duplex steel to suit different operating pressures and temperatures. The compact design of SR elbows, while efficient for tight layouts, can cause a slightly higher pressure drop due to the sharper change in flow direction.

Short Radius Elbows are widely used in petrochemical plants, oil & gas refineries, shipbuilding, power generation, and water treatment systems. They are ideal for piping systems where space constraints or specific layout requirements demand tighter bends. SR elbows are also commonly used in high-pressure or low-flow systems where the smooth transition of flow is less critical. Their durable construction, precision fit, and ability to withstand demanding conditions make them suitable for both industrial and commercial applications.

Standard Specification For Buttweld Short Radius Pipe Elbow

Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～48″)

Type : Seamless / ERW / Welded / Fabricated

Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Form : 90 Deg Short Radius Elbow, 45 Deg Short Radius Elbow, 180 Deg Short Radius Elbow, 1D Elbow, 3D Elbow, 5D Elbow.

Material & Grades of Buttweld Short Radius Elbow

Stainless Steel Buttweld SR Elbow (Short Radius Elbow) :

ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Duplex & Super Duplex Steel Buttweld SR Elbow (Short Radius Elbow) :
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

Carbon Steel Buttweld SR Elbow (Short Radius Elbow) :
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel SR Elbow (Short Radius Elbow) :
ASTM A420 WPL3, A420 WPL6

Alloy Steel Buttweld SR Elbow (Short Radius Elbow) :
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Nickel Alloy Buttweld SR Elbow (Short Radius Elbow) :
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.

ASME B16.9 Buttweld SR Pipe Elbow Available Types

Buttweld Short Radius Elbow	Butt Weld Short Radius 180 Degree Elbows
Steel Short Radius Elbow	90° Short Radius Elbow
ASME B16.9 180 deg Short Radius Elbow	Schedule 10 45Degree SR Elbow
Stainless Steel 180 Degree SR Elbow Suppliers	SS Short Radius Elbows
ANSI B16.9 45 Degree Buttweld Elbow Dealer	ASME B16.28 Buttweld 180 Degree Elbow Exporter
Welded 3D SR Elbow Stockholder	Seamless 90° Pipe Elbow Distributors
Carbon Steel 5D SR Elbow	High Quality SR Elbow Manufacturer
ASTM A403 Stainless Steel Short Radius Elbows	Duplex Steel 1D Pipe SR Elbow
Super Duplex Steel 45 Deg Elbow	Copper Nickel 90 Deg Short Radius Elbow
High Nickel Alloy Short Radius Elbow	Hastelloy 90° Short Radius Pipe Elbow Stockist
Titanium 180 Degree SR Pipe Elbow	Inconel Butt weld 180 Deg SR Pipe Elbow

Buttweld Short Radius Pipe Elbow Application

Stainless Steel 180° Buttweld Short Radius Elbow uses in Oil and Gas Pipeline
90° Buttweld SR Elbow uses in Chemical Industry
Buttweld Short Radius Pipe Elbow uses in Heating
SR Buttweld Elbow uses in Water Supply Systems
ANSI B16.9 Buttweld Short Radius Elbow uses in Power Plant
45° Degree Short Radius Elbow uses in General Purpose Applications
Short Radius Elbow uses in Food Processing Industry
Buttweld Short Radius Elbow uses in Structural Pipe
