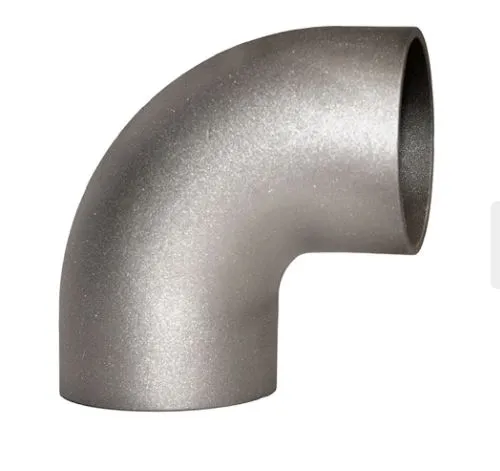

ASME B16.9 Buttweld 90 Degree Pipe Elbow Manufacturer

What is a 90 degree elbow used for?

A 90-degree elbow is one of the most commonly used pipe fittings in plumbing and industrial piping systems. It is designed to change the direction of fluid flow by 90 degrees, either to the left or right. This fitting is essential in pipelines where space constraints or system layouts require a sharp turn, allowing efficient redirection of liquids, gases, or steam without significantly affecting pressure or flow performance.

90-degree elbows are available in different types such as buttweld, socket weld, and threaded, depending on the installation requirements. They are manufactured using a variety of materials including stainless steel, carbon steel, alloy steel, copper, PVC, and ductile iron, ensuring compatibility with diverse applications. These elbows are produced as per international standards like ASME B16.9, ASME B16.11, and MSS-SP-43, and are available in both long radius (LR) and short radius (SR) designs to suit different flow and space conditions.

90-degree elbows are widely used in oil & gas, chemical processing, water treatment, power generation, HVAC, and shipbuilding industries. In plumbing systems, they help connect pipes at right angles, enabling efficient routing of water or gas lines. In industrial settings, they are essential for systems where pipelines need to navigate around structures or equipment. Their durability, leak-proof design, and ability to handle high pressure make them ideal for both low-pressure and high-pressure piping applications.

Standard Specification For Buttweld 90° Pipe Elbow

Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～48″)

Type : Seamless / ERW / Welded / Fabricated

Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Form : Elbow, 90 Deg Elbow, Long Radius Elbow, Short Radius Elbow, LR Elbow, SR Elbow.

Material & Grades of Buttweld 90° Pipe Elbow

Stainless Steel Buttweld 90° Pipe Elbow :

ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Duplex & Super Duplex Steel Buttweld 90° Pipe Elbow :
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

Carbon Steel Buttweld 90° Pipe Elbow :
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel 90° Pipe Elbow :
ASTM A420 WPL3, A420 WPL6

Alloy Steel Buttweld 90° Pipe Elbow :
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Nickel Alloy Buttweld 90° Pipe Elbow :
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.

ASME B16.9 Buttweld 90 Degree Elbow Available Types

Buttweld Elbow 45 Degree	Butt Weld Long Radius 45 Degree Elbows
Steel Pipe Elbow	45° Short Radius Elbow
ASME B16.9 45 deg Long Radius Elbow	Schedule 10 45 Degree Elbow
Stainless Steel 45 Degree Pipe Elbow Suppliers	SS 45 Deg. Elbows
ANSI B16.9 45 Degree Buttweld Elbow Dealer	ASME B16.28 Buttweld 45 Degree Elbow Exporter
Welded 45 Deg Elbow Stockholder	Seamless 45° Pipe Elbow Distributors
Carbon Steel 45deg.Elbow	High Quality 45° Elbow Manufacturer
ASTM A403 Stainless Steel 45 Deg Elbows	Duplex Steel 45° Pipe Elbow
Super Duplex Steel 45 Deg Elbow	Copper Nickel 45 Deg Elbow
High Nickel Alloy 45° Elbow	Hastelloy 45° Pipe Elbow Stockist
Titanium 45 Degree Elbow	Inconel Butt weld 45 Deg Pipe Elbow

Buttweld 90° Elbow Application

Stainless Steel 90° Buttweld Elbow uses in Oil and Gas Pipeline
90° Buttweld Pipe Elbow uses in Chemical Industry
Alloy Steel 90° Elbow uses in Plumbing
Buttweld 90 Degree Pipe Elbow uses in Heating
90 Degree Buttweld Elbow uses in Water Supply Systems
90° Degree Elbow uses in General Purpose Applications
Buttweld 90° Long Radius Elbow uses in Fabrication Industry
Buttweld 90° Short Radius Elbow uses in Structural Pipe
